VOC – BAPI-Stat “Quantum” VOC Sensor

Configure Product:

Clear

If you can't find what you're looking for, please give us a call at +1-608-735-4800.

Part Number:
N/A
List Price: $425.00
Clear
Description
Documents

Humans respirate Volatile Organic Compounds (VOCs) as well as CO2. The BAPI sensor measures these VOCs and indicates when a space is occupied just as well as a CO2 sensor. The advantage of the VOC sensor is that it measures air contaminants from other sources besides respiration, such as building materials, cleaners, perfumes and furniture and carpet off-gassing. Using this sensor for Demand Controlled Ventilation then is a way of achieving true indoor air quality, rather than just CO2 dilution.

A further benefit is that it requires no additional work on your part. That’s because the sensor converts the VOC reading to a CO2 equivalent level. This lets you use ASHRAE’s CO2-based VRP schedule to ventilate. (More information on the CO2 equivalent output is available in the Application Notes tab below.)

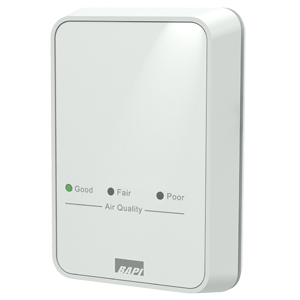

The BAPI-Stat “Quantum” VOC Room Sensor features 0 to 5 VDC or 0 to 10 VDC output. The VOC level is indicated as “Good, Fair or Poor” by three green, yellow and red LEDs on the front of the unit.

Description

Humans respirate Volatile Organic Compounds (VOCs) as well as CO2. The BAPI sensor measures these VOCs and indicates when a space is occupied just as well as a CO2 sensor. The advantage of the VOC sensor is that it measures air contaminants from other sources besides respiration, such as building materials, cleaners, perfumes and furniture and carpet off-gassing. Using this sensor for Demand Controlled Ventilation then is a way of achieving true indoor air quality, rather than just CO2 dilution.

A further benefit is that it requires no additional work on your part. That’s because the sensor converts the VOC reading to a CO2 equivalent level. This lets you use ASHRAE’s CO2-based VRP schedule to ventilate. (More information on the CO2 equivalent output is available in the Application Notes tab below.)

The BAPI-Stat “Quantum” VOC Room Sensor features 0 to 5 VDC or 0 to 10 VDC output. The VOC level is indicated as “Good, Fair or Poor” by three green, yellow and red LEDs on the front of the unit.
